About This Video

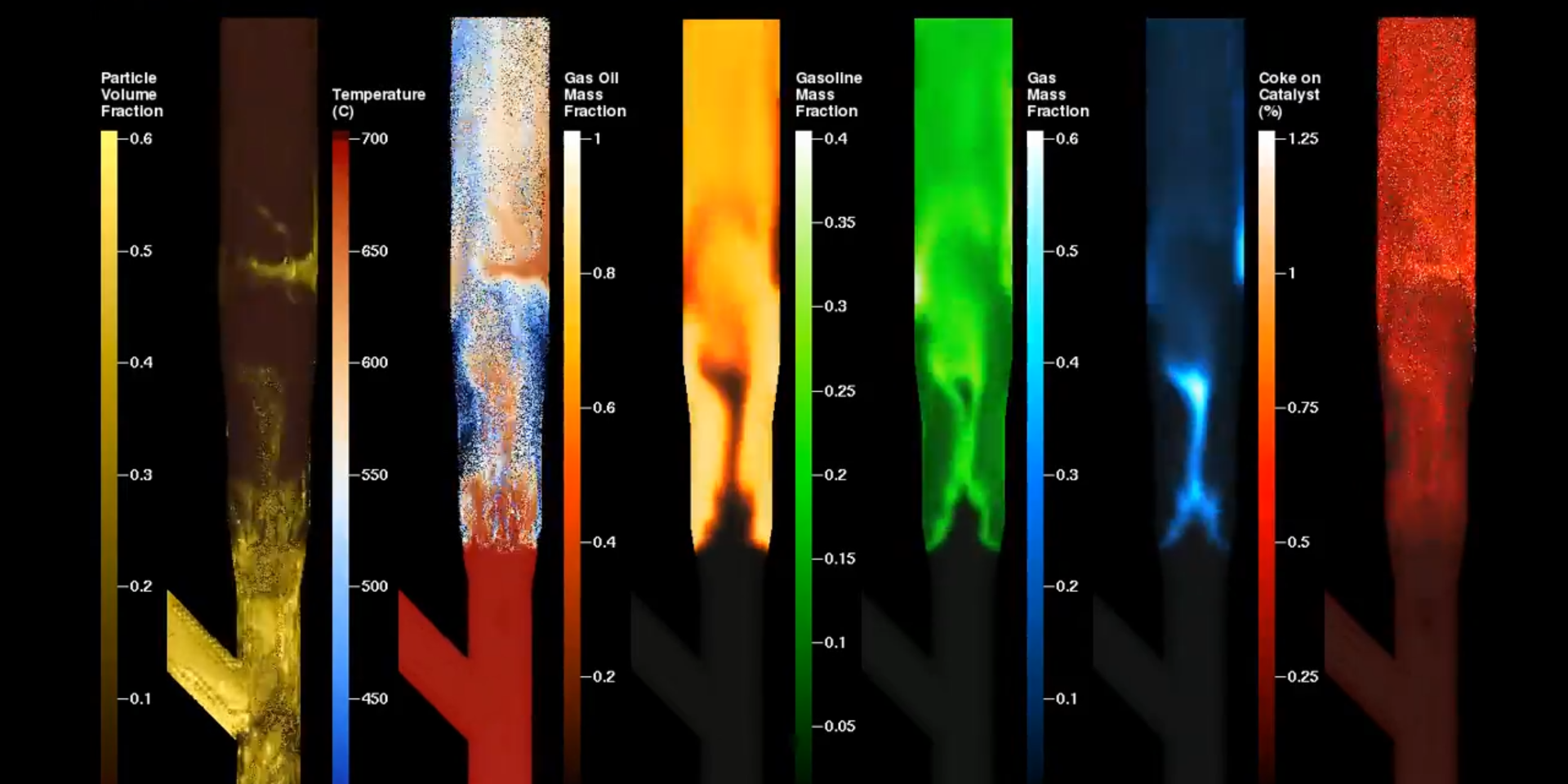

This video shows the transient, 3D modeling of the thermal and reacting flows inside an FCC riser located on the Arabian Peninsula. Ecat from the regenerator enters through the standpipe at the left and is transported up the riser. Vaporized gas oil reacts to form gasoline, lighter gases and deposits coke on the catalyst. The computational fluid dynamics model is constructed using the Barracuda Virtual Reactor, and includes both gas phase and discrete particle reactions.
To learn more about Barracuda VR FCC applications, visit our FCC Resources page.
Visitors from China who are unable to view this view are invited to view it on the Chinese Yanfabu website (中国研发埠学习平台) by clicking here.
