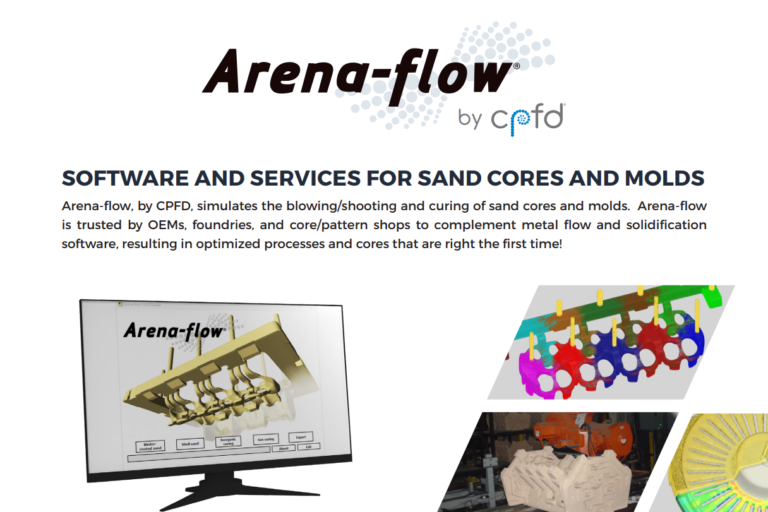

Arena-flow Product Sheet
View Fullscreen
Arena-flow, by CPFD, simulates the blowing/shooting and curing of sand cores and molds. Arena-flow is trusted by OEMs, foundries, equipment manufacturers, and core/pattern shops to complement metal flow and solidification software, resulting in optimized processes and cores that are right the first time!
Using Arena-flow our clients:
Arena-flow was designed from the ground up to capture discrete sand filling physics to accurately simulate core blowing/shooting and curing behavior which is difficult (or impossible) to predict using adaptations to metal flow and solidification software. It is best suited for high-complexity, high-volume cores made via the following processes:
Process Modeling: Sand Core Blowing*, a publication presenting Arena-flow’s early capabilities, won the 2003 AFS Howard F Taylor Award from the American Foundry Society in recognition of the paper having the greatest long-range technical significance in the field of cast metals technology. Over two decades later the impact of Arena-flow is still going strong!
* Authors: Ken Williams and Dale Snider from Arena-flow, Mike Walker and Sheila Palczewski from General Motors

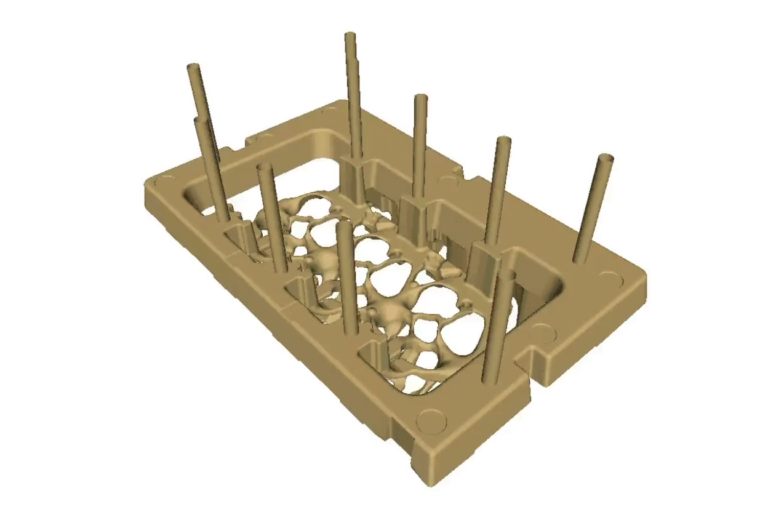

Cylinder Head Water Jacket Blowing Simulation

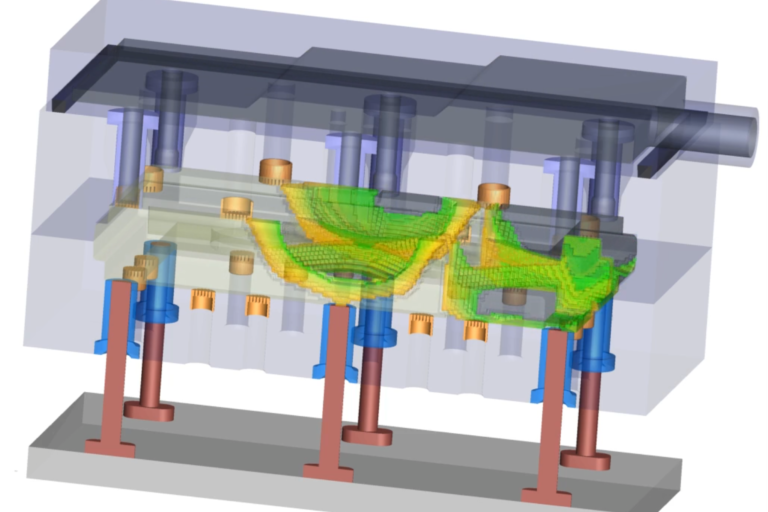

Cold Box Curing Validation
Simulation Including Multiple Cores and Sand Magazine
CPFD Software is pleased to announce the renewal of its software licensing agreement with Aurrenak & Loramendi Group, reaffirming their continued use of the Arena-Flow simulation software.
Arena-flow is used to simulate the filling of an automotive cylinder head water jacket core through an integrated core print.

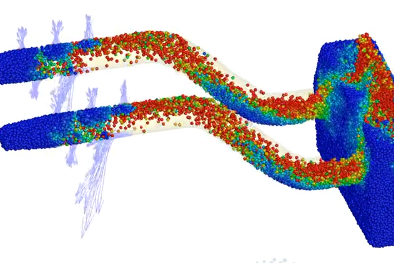

Arena-flow, by CPFD, models the air-driven sand flow critical to the creation of consistent, high-quality sand cores and molds for many processes including cold-box, shell, inorganics, greensand, hot-box, and warm-box. This video illustrates how air flow drags sand into the cavity.
This video shows how a mixture of gas and air progresses inside a core box, as the sand has contact with gas, air, cured sand, in this instance cured sand is shown as transparent dark grey.

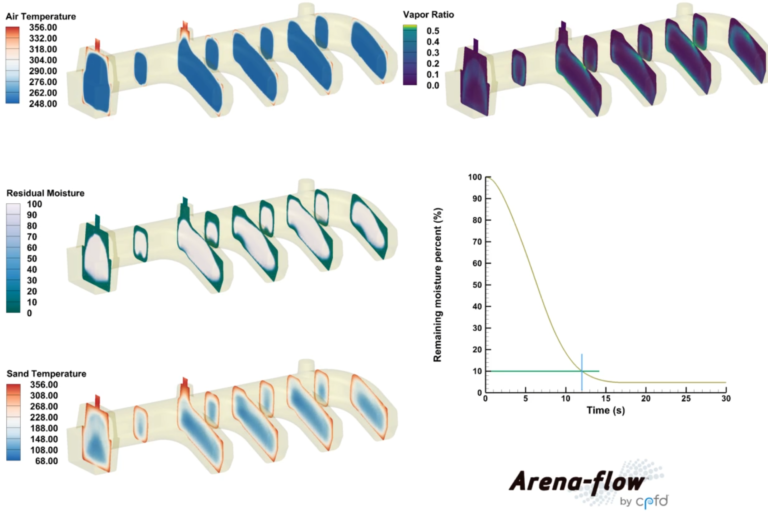

This video demonstrates Arena-flow’s inorganic curing capabilities for dehydrative systems.
This video demonstrates the air-sand motion computed by Arena-flow for a magazine used to fill multiple sand cores. As the magazine pressurizes, the air drags sand into the core.
This video shows the cope and drag views of a thin-walled jacket core made using the shell sand / warm box module of Arena-flow.
Arena-flow by CPFD Software simulates the blowing of industrial sand cores, and this video highlights a cold box core scenario of a cylinder head water jacket.
CPFD Software is pleased to announce that we are now the global provider of the Arena-flow Sand Core Engineering CAE software product, including responsibility for software development, licensing, support, training and services.
This video demonstrates the validation of Arena-flow’s cold box curing model using transparent tooling.
This paper presents validation and application of Arena-flow for sand core blowing and curing processes.
