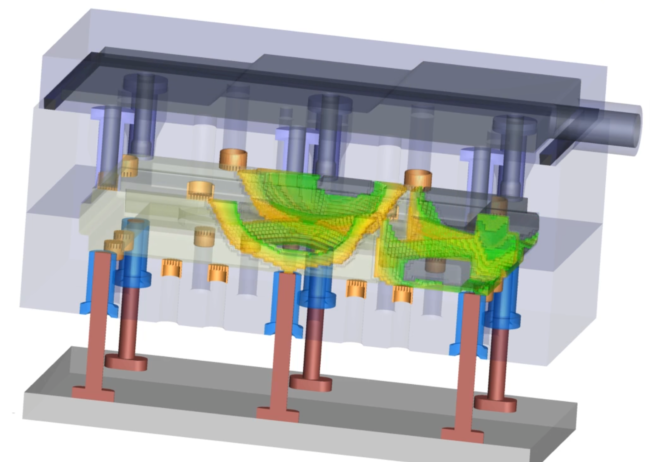

Cold Box Curing, Gas and Air Progress Inside Tool
This video shows how a mixture of gas and air progresses inside a core box, as the sand has contact with gas, air, cured sand, in this instance cured sand is shown as transparent dark grey.

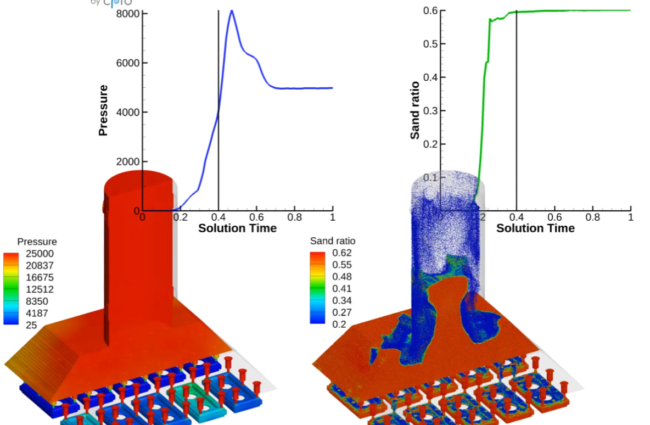

Full Magazine Simulation, Pressure and Sand Ratio
This video demonstrates the air-sand motion computed by Arena-flow for a magazine used to fill multiple sand cores. As the magazine pressurizes, the air drags sand into the core.

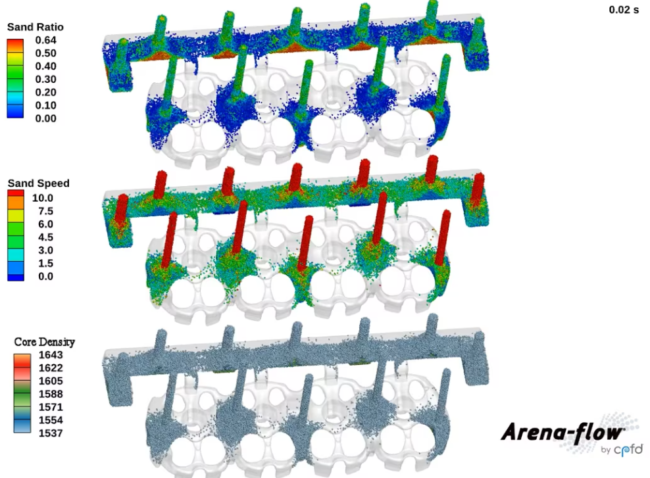

Cold Box Core Blowing, Cylinder Head Water Jacket
Arena-flow by CPFD Software simulates the blowing of industrial sand cores, and this video highlights a cold box core scenario of a cylinder head water jacket.

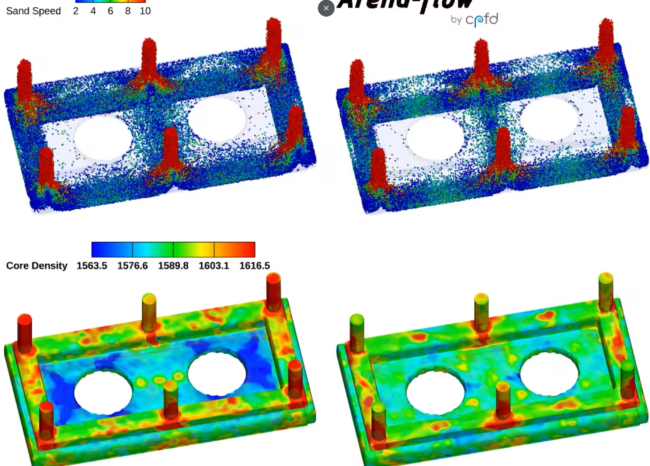

Core Blowing and Related Core Density
This video shows a comparison between two iterations of core layouts.
